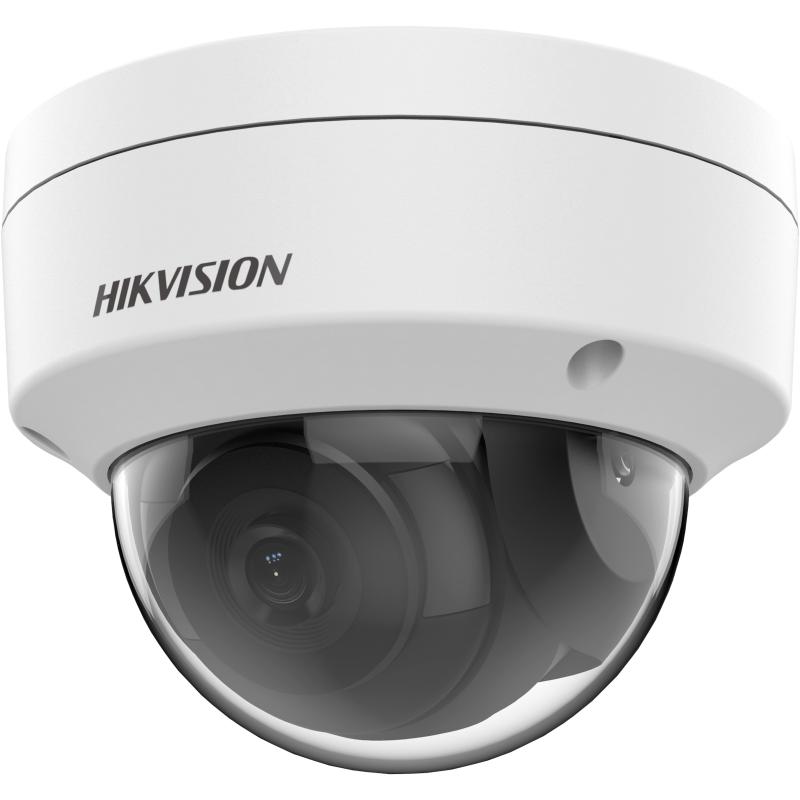

2 MP MD IR IP Dome Camera

2.8 mm, horizontal FOV 104°, vertical FOV 58°, diagonal FOV 123°

4 mm, horizontal FOV 81°, vertical FOV 43°, diagonal FOV 96°

2.8 mm, D: 42 m, O: 16 m, R: 8 m, I: 4 m

4 mm, D: 57 m, O: 22 m, R: 11 m, I: 5 m

50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Up to 32 users

3 user levels: administrator, operator, and user

Plug-in required live view: IE 10, IE 11

Local service: Chrome 57.0+, Firefox 52.0+

12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

FCC: 47 CFR Part 15, Subpart B

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

RCM: AS/NZS CISPR 32: 2015

IC: ICES-003: Issue 7

KC: KN32: 2015, KN35: 2015

UL: UL 62368-1

CB: IEC 62368-1: 2014+A11

CE-LVD: EN 62368-1: 2014/A11: 2017

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

CE-RoHS: 2011/65/EU

WEEE: 2012/19/EU

Reach: Regulation (EC) No 1907/2006
